How to Choose Crushed Diamond Grit for Grinding Tools
Introduction

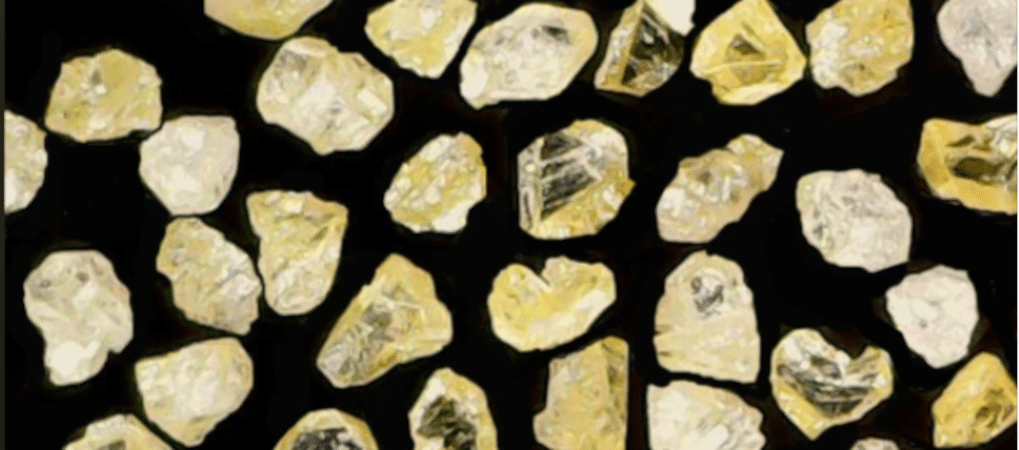

Crushed diamond grit is produced by crushing synthetic diamond crystals into irregular, angular particles. Compared with more regular monocrystalline diamond grit, it provides sharper cutting edges and more controllable fracture behaviour, making it suitable for grinding applications that require active cutting and abrasive renewal.
Selecting the right crushed diamond grit for grinding tools depends primarily on crystal strength and self-sharpening behaviour, particle shape, grit size, bond system, workpiece material, and grinding conditions. These factors determine how the abrasive cuts, fractures, wears, and ultimately affects material removal, wheel life, and surface finish.
This guide explains how to select crushed diamond grit for resin, vitrified, metal bond, and electroplated grinding tools, including practical grade and grit-size selection directions.
Which Crushed Diamond Characteristics Affect Grinding Tool Performance?
The performance of crushed diamond grit for grinding tools depends mainly on crystal strength and fracture behaviour, particle shape, grit size, and thermal stability. These characteristics influence cutting action, self-sharpening, grit wear, tool life, and surface finish[^1]. Surface coating is considered separately according to the bond system and tool design.
Crystal Strength and Self-Sharpening Behaviour
Crystal strength determines how well diamond grit resists fracture under grinding loads, while fracture behaviour controls how worn cutting edges renew during use.
Higher-strength grades resist premature breakdown under heavier loads[^2], while more friable grades micro-fracture more readily to expose fresh cutting edges. The appropriate crushed diamond grade should balance grit retention with the self-sharpening required by the grinding process.
Particle Shape and Cutting Behaviour
Particle shape affects cutting aggressiveness, grinding force, and material removal behaviour. Sharper, more angular crushed diamond particles provide more aggressive cutting, while relatively blockier particles offer more controlled cutting and wear.
Particle shape should be selected together with crystal strength and grit size according to the required balance of cutting efficiency, tool life, and surface quality.
Particle Size and Grit Distribution
Diamond grit size affects abrasive protrusion, cutting-point density, chip clearance, material removal rate, and surface finish.
Coarser diamond grit generally supports higher stock removal and better chip clearance[^3], while finer grit provides more cutting points for controlled grinding and finer finishes. The appropriate grit size depends on the workpiece material, grinding allowance, bond system, and target surface quality.
Thermal Stability
Thermal stability is a secondary consideration for crushed diamond grit, becoming more relevant when the abrasive is exposed to elevated temperatures during tool manufacturing or high-load grinding. It should be evaluated together with crystal strength and the actual bond system rather than used as a primary selection parameter.
Surface Coating and Bond Compatibility
Surface coating is a bond-dependent option rather than a primary diamond grit selection factor. Nickel, copper, titanium, or other coatings may be used to modify grit retention and interface behaviour[^4] in specific bond systems.
Coated diamond grit should therefore be considered after the base diamond grade, crystal strength, particle shape, and grit size have been determined.

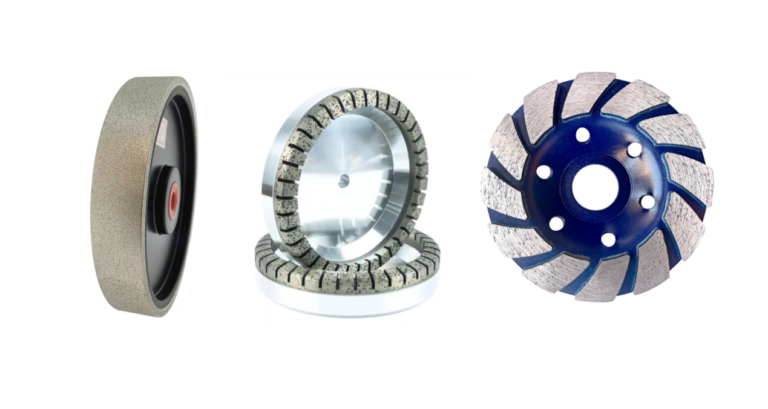

How to Choose Crushed Diamond Powder for Different Grinding Tools
The right crushed diamond grit for grinding tools depends mainly on the bond system, grinding load, workpiece material, material removal requirement, and target surface finish. Crystal strength and fracture behaviour should be considered first, followed by particle shape and grit size.
In general, resin and vitrified grinding wheels require a balance between cutting ability and self-sharpening, while metal bond tools usually require greater resistance to premature grit breakdown. Electroplated tools place greater emphasis on particle strength and integrity because only one abrasive layer is available[^5].

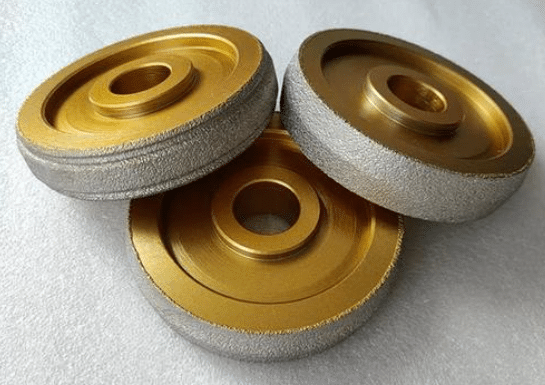

Resin Bond Grinding Wheels
Resin bond grinding wheels commonly use friable crushed diamond grit with sharp cutting edges and controlled self-sharpening. More friable grades fracture progressively during grinding, helping maintain cutting efficiency and control grinding forces.
For economical, lower-load applications, GRVD crushed diamond provides a cost-effective option with sharp, irregular particles. For applications requiring greater grit strength and more stable wear, resin bond crushed diamond can be selected according to the workpiece and grinding conditions.
Vitrified Bond Grinding Wheels
Vitrified bond wheels generally use crushed diamond with controlled friability and consistent particle characteristics[^6]. The required strength depends on the bond formulation, grinding load, and desired balance between self-sharpening and wheel life.
More friable grades support free-cutting behaviour, while stronger crushed diamond may be selected where longer abrasive life and dimensional stability are required. Grit size becomes increasingly important in precision and internal grinding applications.

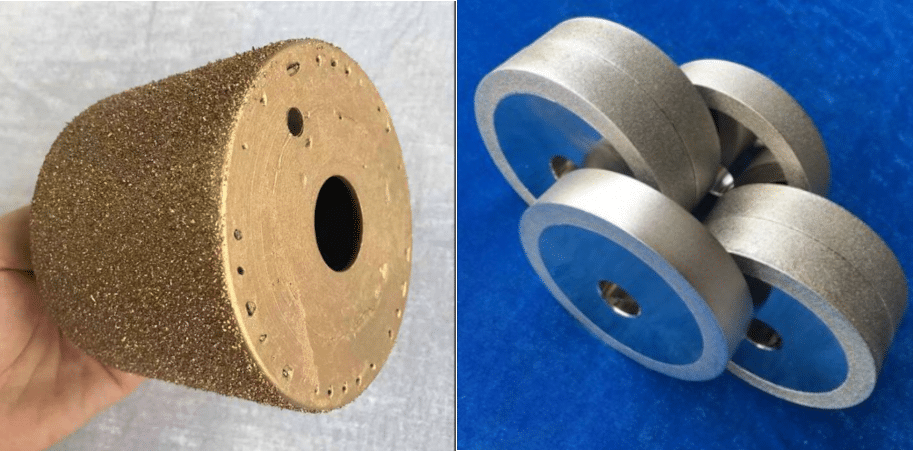

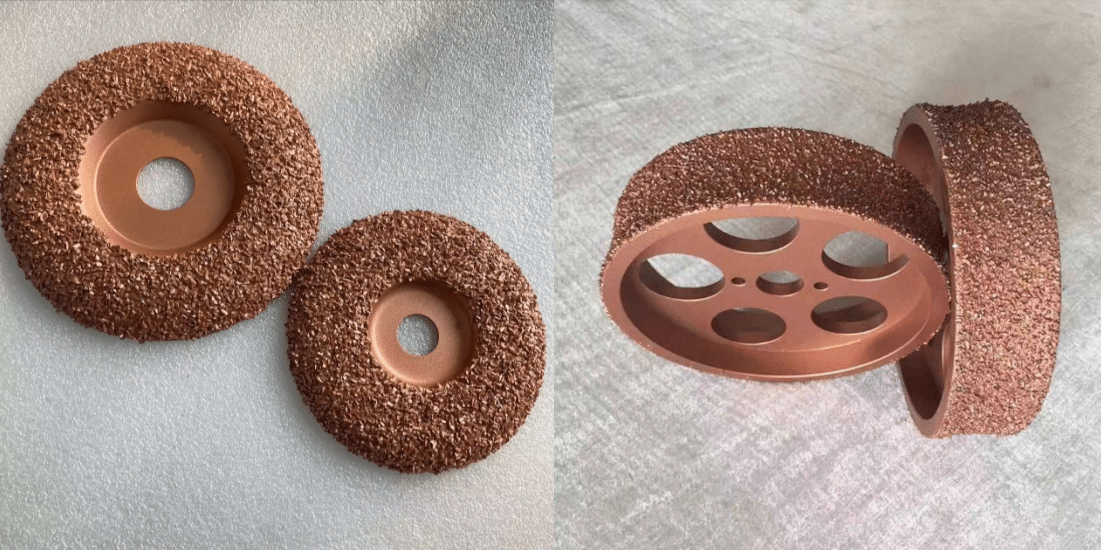

Metal Bond Grinding Tools
Metal bond grinding tools generally require medium to high-strength crushed diamond grit because the abrasive is retained longer and may experience higher grinding loads before being released from the bond.
For wear-oriented applications, metal bond crushed diamond provides stronger grit integrity and more controlled wear than highly friable RVD-type grades. Final selection should consider grinding load, workpiece material, bond formulation, and required tool life.
Electroplated Diamond Tools
Electroplated tools use a single exposed abrasive layer, making diamond strength and particle integrity particularly important. The grit must provide sufficient cutting ability without premature fracture or loss of usable cutting points.
Crushed diamond is used in selected electroplated profile and specialty tools rather than across all electroplated applications. Where a sharper crushed morphology is required, electroplating-grade crushed diamond can be considered according to tool geometry and grinding conditions.
Typical Crushed Diamond Grit Sizes for Grinding Tools
Crushed diamond grit is commonly available in approximately 60/70 to 325/400 mesh, with selected grades extending from about 50/60 to 400/500 mesh. Unlike regular monocrystalline mesh diamond, crushed grades are primarily selected where sharp cutting edges and controlled fracture behaviour are required.
| Grinding Tool Type | Common Selection Direction | Typical Crushed Diamond Size |
|---|---|---|
| Resin bond grinding wheels | Friable to medium strength, good self-sharpening | 80/100 – 230/270 mesh |
| Vitrified bond grinding wheels | Controlled friability, consistent grit quality | 100/120 – 325/400 mesh |
| Metal bond grinding tools | Medium to high strength, controlled wear | 60/70 – 170/200 mesh |
| Electroplated specialty tools | Higher strength and particle integrity | 60/70 – 170/200 mesh |
| Fine grinding / finishing | Controlled fracture and high cutting-point density | 230/270 – 400/500 mesh |
These size ranges are practical starting points rather than fixed specifications. The final crushed diamond grit size should not be selected from the bond system alone, but should also consider the workpiece material, grinding allowance, abrasive concentration, wheel design, and required surface finish.
Common Grinding Problems Related to Crushed Diamond Grit Selection
Premature Grit Breakdown
Crushed diamond that is too friable for the grinding load may fracture faster than the bond can effectively use the abrasive[^7]. This can increase diamond consumption and shorten grinding tool life.
Premature Grit Pull-Out
Poor grit retention may result from an unsuitable combination of diamond surface condition, bond strength, grit size, and tool formulation. The abrasive may be released before its cutting potential is fully used, reducing grinding consistency and wheel life.
Wheel Glazing and Excessive Grinding Heat
If the diamond grit is too strong or insufficiently self-sharpening for the bond and grinding conditions, worn cutting points may remain dull instead of renewing through controlled fracture. This can increase grinding forces, heat generation, and the risk of wheel glazing.
Excessive Surface Damage
Crushed diamond grit that is too coarse or too aggressive for the required finish can increase penetration depth and produce deeper grinding marks or higher surface roughness.
Wheel Loading and Reduced Cutting Efficiency
Very fine grit, insufficient chip space, or an unsuitable bond/workpiece combination can promote wheel loading. This reduces cutting efficiency and may increase grinding force and heat.
Crownkyn Crushed Diamond Powder Solutions
Crownkyn supplies crushed diamond grit for grinding tools across different strength levels, mesh sizes, particle shapes, and application grades for resin bond, vitrified bond, metal bond, and selected electroplated tools. Available options include economical Green RVD / GRVD, resin-bond grades, stronger metal-bond grades, electroplating grades, and reshaped crushed diamond for more controlled grinding performance.
For grade selection, we evaluate the bond system, workpiece material, grinding load, current grit size, required self-sharpening behaviour, surface-finish target, and tool-life requirement. Particle size, strength, fracture behaviour, and morphology can be matched or adjusted for comparative testing, while coating can be considered separately when required by the bond formulation.
For a starting grade recommendation, share your grinding tool type, bond system, workpiece material, current diamond specification, main grinding problem, and target performance. Crownkyn can recommend a suitable crushed diamond grit specification and provide free samples for initial testing, allowing you to compare cutting efficiency, wheel wear, and surface finish before confirming the final grade.
Frequently Asked Questions About Crushed Diamond Grit
What Is the Difference Between RVD Crushed Diamond and Monocrystalline Mesh Diamond?
RVD crushed diamond generally has a more irregular, angular morphology and higher friability, providing sharp cutting edges and active self-sharpening. Monocrystalline mesh diamond typically has more complete and stronger crystals with greater resistance to fracture, making it more suitable where grit durability and controlled wear are priorities.
How Do I Choose Between Friable and High-Strength Crushed Diamond Grit?
Choose more friable crushed diamond where active self-sharpening, free-cutting behaviour, and lower grinding forces are important, and stronger grades where resistance to premature fracture and longer abrasive life are priorities. The final strength should be matched to the bond system, workpiece material, and grinding load.
What Crushed Diamond Grit Size Should I Use for Grinding Wheels?
Crushed diamond grit commonly ranges from 60/70 to 325/400 mesh. Coarser grit is generally selected for higher material removal and better chip clearance, while finer grit provides more cutting points and is preferred where better surface finish and more controlled grinding are required.
Is Crushed Diamond Suitable for Electroplated Grinding Tools?
Yes. Crushed diamond can be used in selected electroplated profile and specialty grinding tools where sharp cutting geometry is required. However, regular monocrystalline diamond grit may be preferred where higher particle strength, controlled morphology, and longer individual grit life are more important.
Conclusion
Crushed diamond grit selection should start with the bond system, grinding load, workpiece material, and target surface finish. Crystal strength and fracture behaviour determine how the grit survives and self-sharpens, while particle shape and grit size control cutting aggressiveness, material removal, and finish quality.
The final grade should be confirmed through comparative grinding tests under the actual tool and process conditions, especially when changing strength level, grit size, or bond system.
