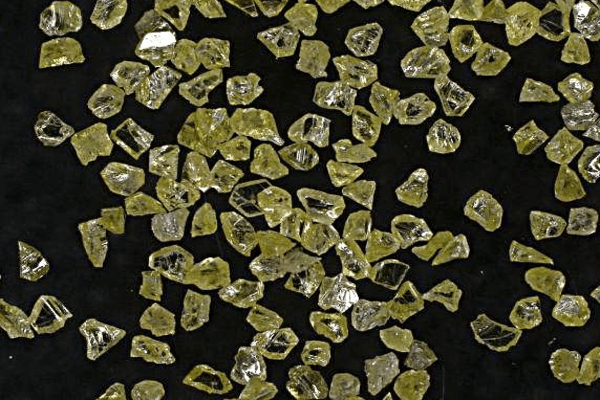

GCD30 — Electroplating-Grade Crushed Diamond Grit

20+ Years Experience Consistent Batch Quality Customized Solutions

Product Overview

GCD30 is an electroplating-grade crushed diamond grit developed for selected electroplated grinding and profiling tools requiring sharp cutting geometry, controlled particle shape and reliable grit integrity. Its angular crushed morphology provides active cutting edges, while controlled particle characteristics support consistent grit exposure and stable performance in single-layer electroplated tools.

Features

Controlled Angular Morphology: Provides sharp cutting points for electroplated grinding and profiling tools.
Higher Particle Integrity: Helps maintain usable cutting points in single-layer tool structures.
Consistent Grit Exposure: Controlled particle geometry supports stable abrasive projection.
Stable Cutting Geometry: Suitable for contour, profile and precision grinding applications.
Strict Mesh Classification: Supports uniform grit distribution across electroplated tool surfaces.

Specifications

Diamond Type	Mechanically Crushed HPHT Monocrystalline Diamond
Product Series	Crushed & Sharp Diamond Grit
Grade	GCD30
Grade Direction	Electroplating-Grade Crushed Diamond
Typical Tool Direction	Selected Electroplated Grinding & Profiling Tools
Crystal Morphology	Controlled angular and polyhedral crushed particles
Selection Focus	Grit exposure, particle integrity and stable cutting geometry
Available Mesh Sizes	60/70–400/500

Crushed Diamond Grit Size Table

Size	60/70	70/80	80/100	100/120	120/140	140/170	170/200	200/230	230/270	270/325	325/400	400/500	500/600
GRVD	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
GCD10	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
GCD20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
GCD30	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
GCDZ		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
