Diamond Powder Particle Size Guide: Mesh, Micron and Nano
Why Does Diamond Powder Particle Size Matter?
Diamond powder particle size is far more than a number on a product data sheet, it directly ties into the cutting efficiency, scratch depth, surface finish, operational throughput[1], and overall cost of a manufacturing process.
Coarse particles cut aggressively, removing material quickly but leaves gouges and subsurface damage that requires follow up polishing, Fine particles give smooth polished surfaces but remove material extremly slowly, wasting time and expense if used for rough cutting applications.
Optimal results come from matching the diamond powder particle size to the specific process step and then in a controlled progression through the finer particle sizes, giving the ability to balance speed, surface quality, and cost.
What Is the Difference Between Mesh, Micron and Nano Diamond Powder?
The terms mesh, micron, and nano refer to different particle size ranges used in diamond powders. Each size range is suited to different manufacturing processes, from aggressive cutting and grinding to ultra-precision polishing and CMP.
| Size System | Typical Range | Primary Applications |
|---|---|---|
| Mesh | 20/25–325/400 | Cutting and Grinding |
| Micron | 40-60 μm~0.5-1 μm | Lapping and Polishing |
| Sub-micron and Nano | 0.25-0.5 μm, 5–250 nm | Ultra-Precision Polishing and CMP |

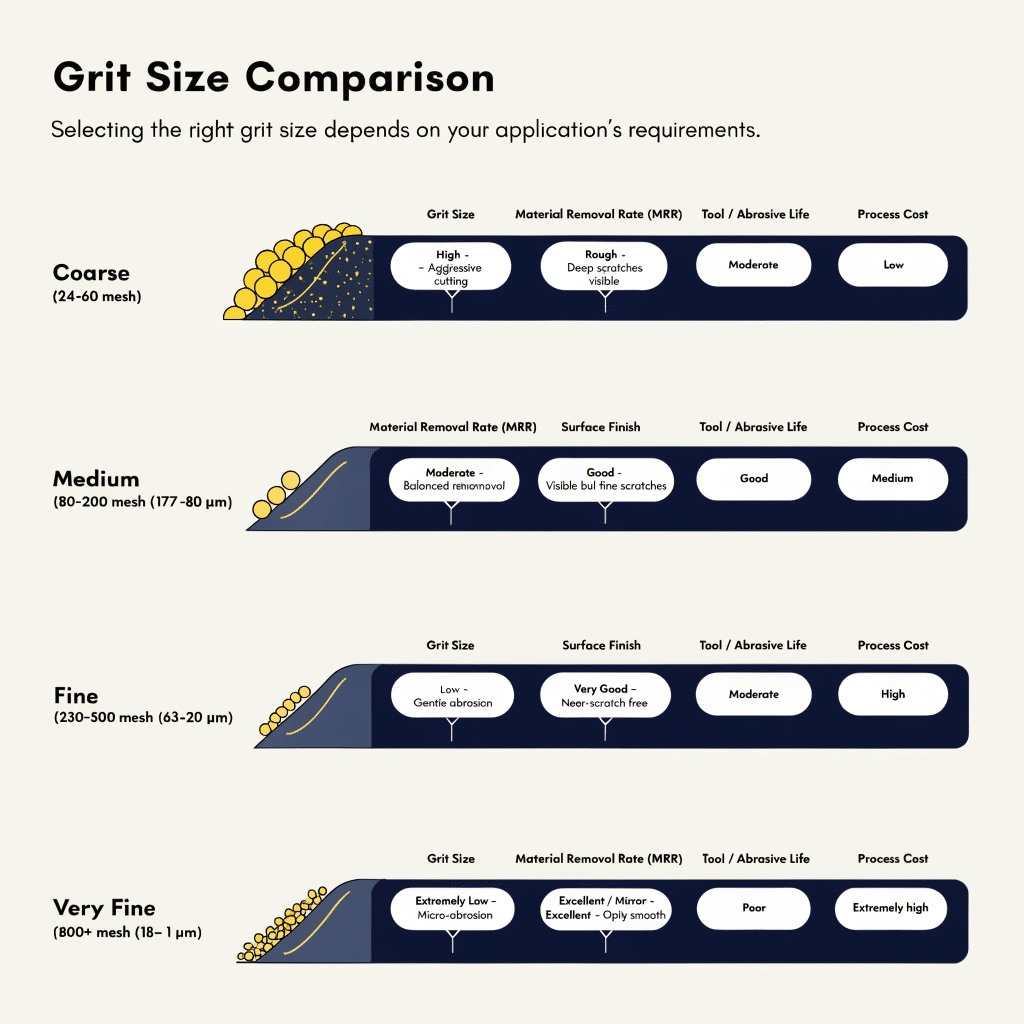

How Does Particle Size Affect Material Removal Rate and Surface Finish?
Particle size is one of the primary factors affecting both material removal rate (MRR) and surface finish. In general, larger diamond particles remove material faster but leave deeper scratches, while smaller particles produce smoother surfaces at a lower removal rate.
When selecting a diamond powder size, manufacturers typically balance several factors:
- Material Removal Rate (MRR): How quickly material can be removed.
- Surface Finish: The required surface roughness and scratch level.
- Process Efficiency: The overall balance between productivity and surface quality.
For most cutting, grinding, lapping, and polishing processes, particle size is reduced progressively as the workpiece moves through different processing stages. Coarser particles are used for rapid material removal, while finer particles are used to remove scratches from the previous step and achieve the required surface finish.
Mesh Diamond Powder Size Guide for Cutting and Grinding
The appropriate mesh diamond powder size depends on the workpiece material, bond system, and required material removal rate. In general, coarser grits are used for aggressive cutting and heavy stock removal, while finer grits are preferred when surface finish and dimensional accuracy become more important.
The recommendations below provide a practical starting point for selecting mesh diamond powder for cutting and grinding applications.
Coarse Mesh Diamond Powder (20/25–50/60 Mesh)

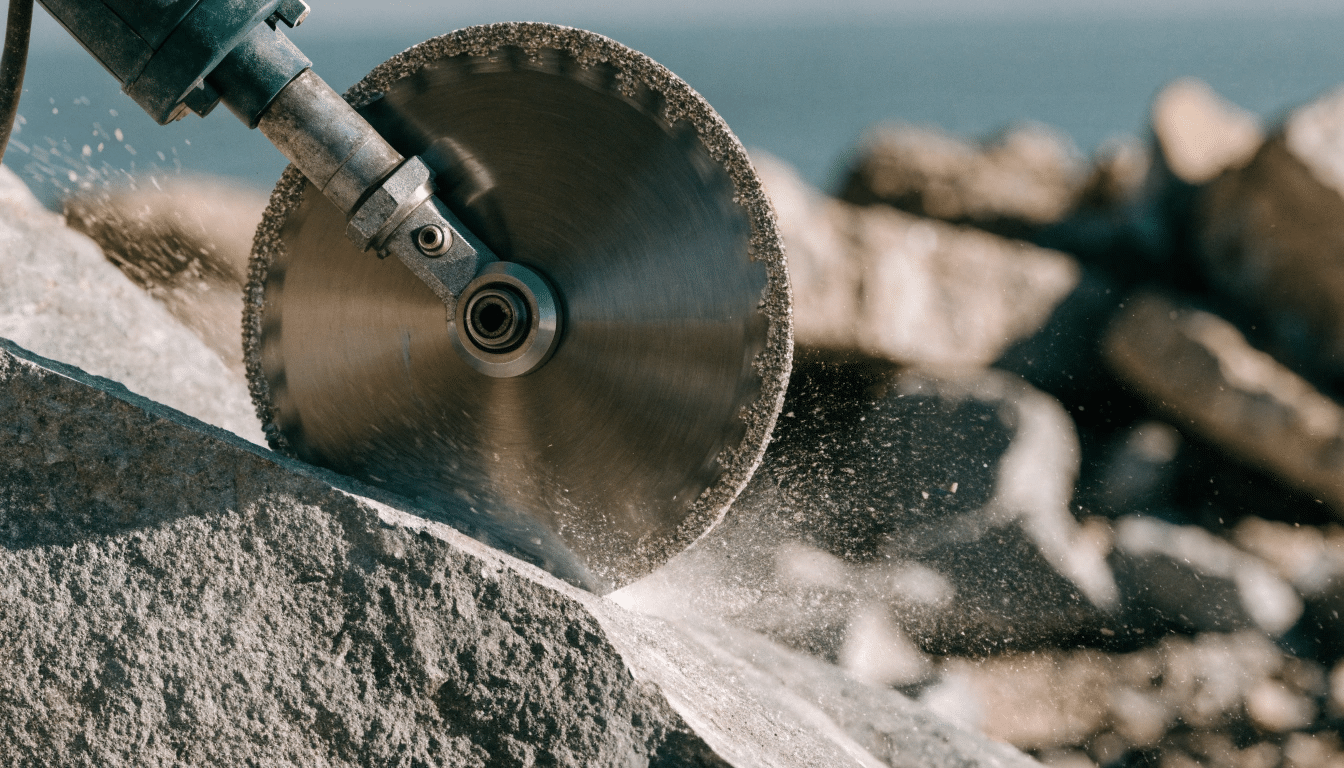

Typical Applications: Concrete saw blades, stone cutting tools, core drill bits, and other heavy-duty cutting applications.
Characteristics: High material removal rate, aggressive cutting action, and efficient chip clearance for hard and brittle materials.
Medium Mesh Diamond Powder (60/70–120/140 Mesh)
Typical Applications: General grinding of steel, cast iron, stone, masonry, and other industrial materials.
Characteristics: Provides a balance between stock removal rate, tool life, and surface finish, making it the most commonly used mesh range.
Fine Mesh Diamond Powder (140/170–325/400 Mesh)
Typical Applications: Carbide grinding, ceramic finishing, tool sharpening, precision grinding, and pre-finishing operations.
Characteristics: Lower material removal rate but improved surface finish, dimensional control, and grinding consistency.
As particle size decreases, material removal rate generally declines while surface finish improves. The optimal mesh diamond powder size is therefore a balance between productivity, tool life, and surface quality requirements.
Micron Diamond Powder Size Guide for Lapping and Polishing
Selecting the correct micron diamond powder depends on the material being processed, the required surface finish, and the stage of the lapping or polishing process. In most applications, particle size is reduced progressively so that each stage removes the scratches left by the previous coarser grade.
Recommended Micron Diamond Powder Sizes by Process Stage
| Process Stage | Particle Size Range | Typical Applications |
|---|---|---|
| Coarse Lapping | 40–60 μm | Rapid stock removal on tungsten carbide, ceramics, PCD, and PDC materials |
| Medium Lapping | 20–40 μm | General lapping and shaping of metals, glass, engineering ceramics, and gemstones |
| Fine Lapping / Pre-Polishing | 9–20 μm | Intermediate lapping and scratch removal on carbide, quartz, PCD, and precision components |
| Fine Polishing | 3–9 μm | Precision optics, mold polishing, metallographic preparation, and ceramic finishing |
| Ultra-Fine Polishing | 1–3 μm | High-precision polishing of optical glass, semiconductors, and advanced materials |
| Mirror Polishing | 0.5–1 μm | Mirror finishing of sapphire, wafers, lenses, and ultra-precision components |
The size ranges above provide a practical starting point for selecting micron diamond powder for lapping and polishing applications. In most processes, particle size is reduced progressively so that each stage removes the scratches and surface damage left by the previous coarser grade.
Sub-Micron and Nano Diamond Powder for Ultra-Precision Polishing
Sub-micron and nano diamond powders are typically used in the final stages of ultra-precision polishing where extremely low scratch depths and superior surface quality are required. Nano diamond powders are commonly used in CMP slurries, semiconductor wafer polishing, optical components, sapphire substrates, and other ultra-precision finishing applications where scratch depth must be minimized.
| Particle Size | Category | Typical Applications |
|---|---|---|
| 0.25–0.5 μm | Sub-Micron Diamond Powder | Ultra-fine polishing of optics, sapphire, and precision components |
| 100–250 nm | Nano Diamond Powder | Advanced ceramics, optical polishing, and semiconductor finishing |
| 25–100 nm | Nano Diamond Powder | CMP slurries and ultra-precision polishing |
| 5–25 nm | Nano Diamond Powder | Specialized CMP, nanocomposites, and research applications |
Because of their extremely small particle size, sub-micron and nano diamond powders are often supplied as diamond slurries or suspensions to improve dispersion and polishing consistency.
Diamond Powder Size Quick Reference Table
| Application | Recommended Particle Size | Typical Purpose |
|---|---|---|
| Concrete & Asphalt Saw Blades | 30/40–50/60 mesh | Aggressive cutting and high material removal |
| Marble & Granite Saw Blades | 60/70–80/100 mesh | General cutting with balanced tool life |
| Core Drill Bits | 40/50–60/80 mesh | Drilling stone, concrete, and masonry |
| Grinding Wheels | 140/170–325/400 mesh | General to precision grinding |
| Rough Lapping | 40–60 μm | Rapid stock removal and surface leveling |
| Fine Lapping | 9–25 μm | Scratch removal and surface refinement |
| General Polishing | 3–9 μm | Fine surface finishing and mold polishing |
| Optical Polishing | 0.5–3 μm | Precision optical surfaces and lenses |
| CMP Applications | 20–200 nm | Semiconductor wafers and advanced materials |
Note: Mesh diamond powder is typically used for cutting and grinding applications, micron diamond powder for lapping and polishing, and nano diamond powder for ultra-precision finishing and CMP processes.
Common Mistakes When Selecting Diamond Powder Particle Size
1. Skipping Intermediate Sizes
The Mistake:
Jumping directly from a coarse particle size to a very fine particle size in an attempt to save processing time.
Why It Fails:
Deep scratches created by the coarse particles are often too large to be removed efficiently by the next fine grade. This increases polishing time and may leave visible scratches in the final surface.
Tip:
Reduce particle size gradually through several processing steps. A step-by-step reduction usually produces better surface quality and more consistent results than trying to remove all scratches in a single stage.
2. Thinking Finer Is Always Better
The Mistake:
Assuming the finest available diamond powder will always produce the best results.
Why It Fails:
Finer diamond powders generally improve surface finish, but they also reduce material removal rate and increase processing time. In many applications, the extra polishing time provides little practical benefit.
Tip:
Select the particle size based on the required surface finish, not the smallest available size. The most efficient process is often the one that achieves the target finish with the highest productivity.
3. Ignoring Particle Size Distribution (PSD)
The Mistake:
Focusing only on the nominal particle size while ignoring particle size distribution.
Why It Fails:
A powder labeled as 9 μm does not mean every particle is 9 μm. Oversized particles can create unexpected scratches, while excessive fines can reduce cutting efficiency and process consistency.
Tip:
For precision lapping and polishing applications, review PSD data such as D10, D50, and D90 whenever possible. A well-controlled PSD usually results in more predictable performance and better surface quality.
4. Focusing Only on Surface Finish
The Mistake:
Evaluating the process only by the final surface appearance.
Why It Fails:
A smooth surface does not always indicate a properly finished part. Damage introduced during earlier grinding or lapping stages may remain below the surface and affect product performance or reliability.
Tip:
Consider both material removal and surface quality throughout the entire process. Proper intermediate steps are often just as important as the final polishing stage.
5. Confusing Different Particle Size Standards
The Mistake:
Assuming mesh sizes, micron sizes, and different international standards are directly equivalent.
Why It Fails:
Standards such as FEPA, ANSI, JIS, and GB use different classification systems. Misinterpreting these standards can result in selecting the wrong particle size and inconsistent processing results.
Tip:
Always confirm the particle size range and standard being used rather than relying solely on grit numbers or grade designations.
6. Ignoring the Bond System, Slurry, or Paste
The Mistake:
Selecting particle size without considering the carrier system or application method.
Why It Fails:
The same diamond particle size can perform differently in resin-bond tools, metal-bond tools, water-based slurries, oil-based suspensions, or diamond pastes. Process performance depends on both particle size and the delivery system.
Tip:
Evaluate particle size together with the bond system, slurry formulation, or polishing compound. Optimizing both factors often produces better results than changing particle size alone.
Need Help Selecting the Right Diamond Powder Size?
Choosing the correct diamond powder size is often easier when starting from the material, process stage, and target surface finish rather than the particle size itself.
To recommend a suitable mesh diamond powder, micron diamond powder, nano diamond powder, or diamond slurry, we typically need:
- Workpiece material
- Application
- Current process step
- Target surface finish
- Existing particle size (if any)
- Current processing issues
Based on this information, Crownkyn Diamond can recommend an appropriate particle size range and product grade for testing.
Conclusion
There is no single “best” diamond powder size for every application. Coarse mesh diamond powder provides efficient cutting and grinding, micron diamond powder is widely used for lapping and polishing, while sub-micron and nano diamond powders are reserved for ultra-precision finishing.
The most effective approach is to select particle size according to the workpiece material, process stage, and required surface finish, then gradually progress to finer grades as processing continues. Doing so improves productivity, reduces polishing time, and helps achieve more consistent results.
Appendix: Diamond Powder Size Charts and Conversion Tables
The appendix includes a diamond particle size chart and conversion tables for commonly used international standards.

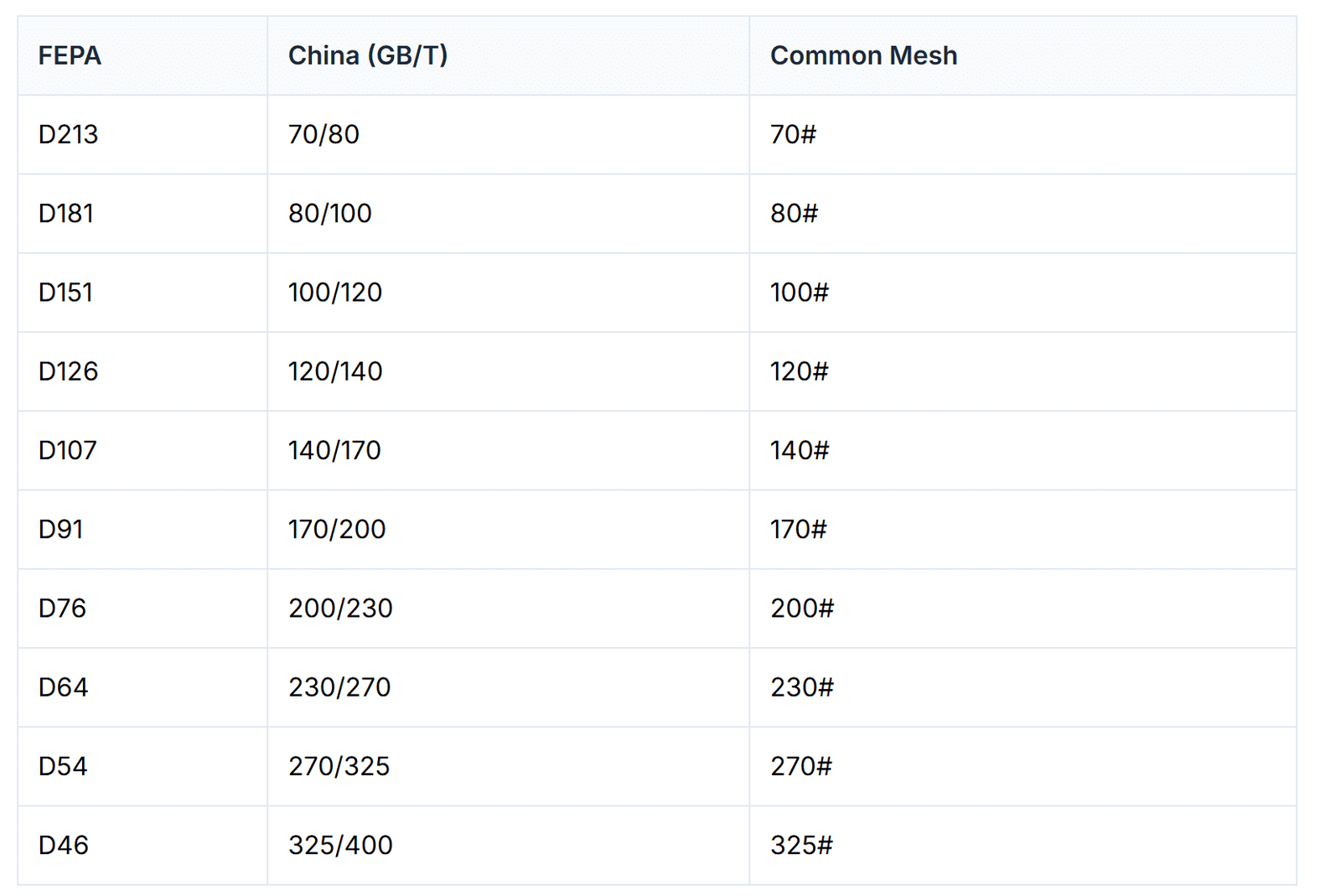

Mesh Diamond Powder Size Chart

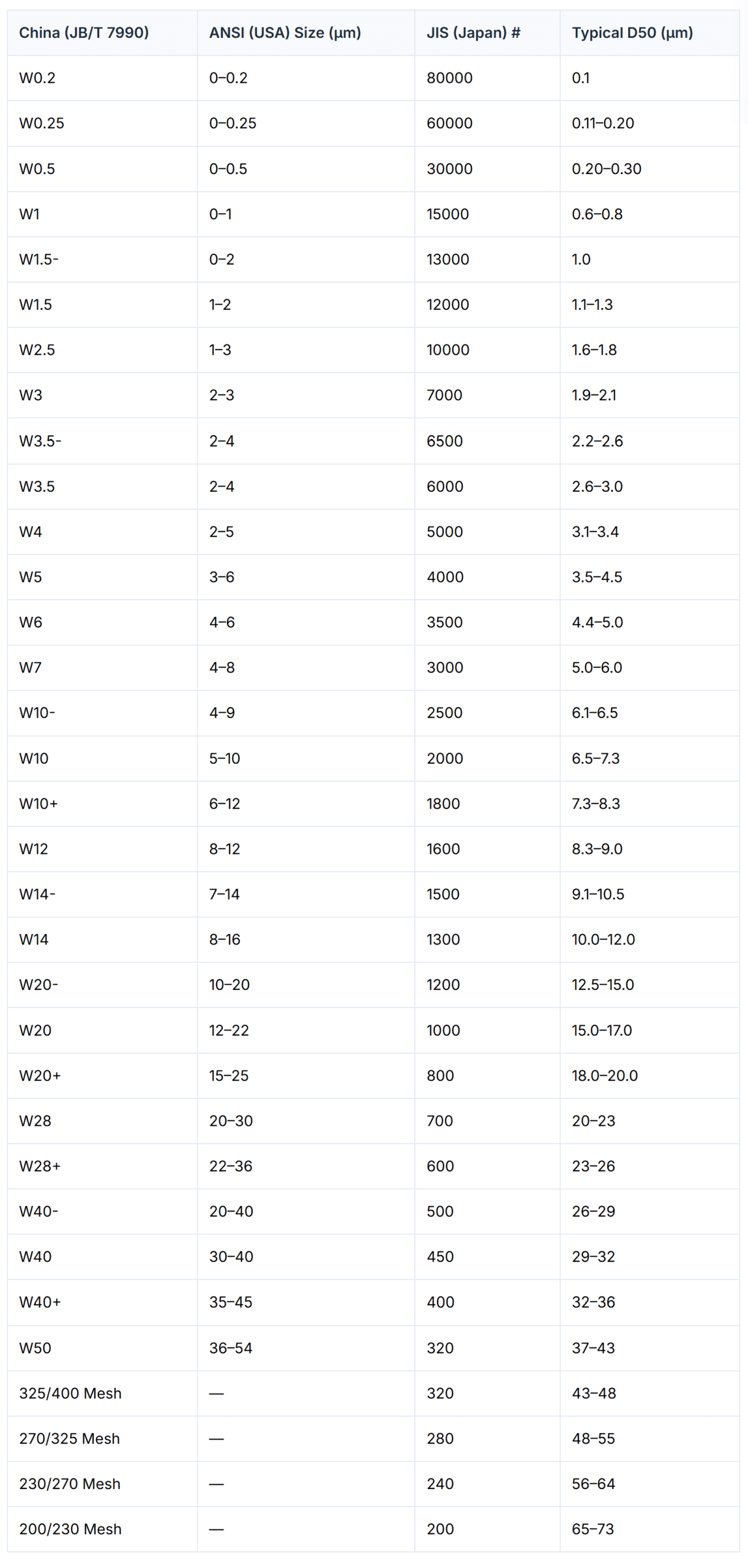

Micron Diamond Powder Size Conversion Chart
Note: Particle sizes above approximately 40 μm are generally classified as mesh diamond grit rather than micron diamond powder. Different suppliers may use GB/T (China), ANSI (USA), or JIS (Japan) sizing systems, so size conversions should always be confirmed when comparing specifications.
International Diamond Grit Size Conversion Chart
| China (GB/T) | Japan (JIS) | Europe (FEPA) | Size (μm) |
|---|---|---|---|
| 16/18 | 16/18 | D1180 | 1000–1180 |
| 18/20 | 18/20 | D1001 | 850–1000 |
| 20/25 | 20/30 | D851 | 710–850 |
| 25/30 | — | D711 | 600–710 |
| 30/35 | 30/40 | D601 | 500–600 |
| 35/40 | — | D501 | 425–500 |
| 40/45 | 40/50 | D426 | 355–425 |
| 45/50 | — | D356 | 300–355 |
| 50/60 | 50/60 | D301 | 250–300 |
| 60/70 | 60/80 | D251 | 212–250 |
| 70/80 | — | D213 | 180–212 |
| 80/100 | 80/100 | D181 | 150–180 |
| 100/120 | 100/120 | D151 | 125–150 |
| 120/140 | 120/140 | D126 | 106–125 |
| 140/170 | 140/170 | D107 | 90–106 |
| 170/200 | 170/200 | D91 | 75–90 |
| 200/230 | 200/230 | D76 | 63–75 |
| 230/270 | 230/270 | D64 | 53–63 |
| 270/325 | 270/325 | D54 | 45–53 |
| 325/400 | 325/400 | D46 | 38–45 |
Notes on International Standards
Different suppliers may use GB/T, ANSI, FEPA, JIS, or ISO standards. Always confirm the sizing system when comparing diamond powder specifications from different sources.
