Introduction

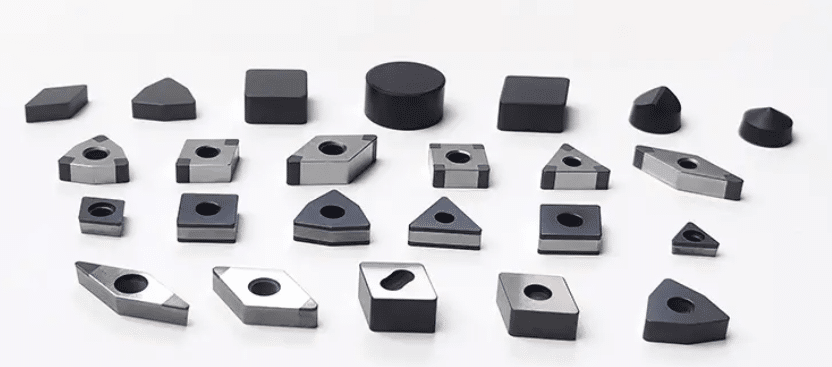

Polycrystalline cubic boron nitride (PCBN) is widely used in cutting tools for machining hardened steels, cast irons, and superalloys[^1]. To ensure optimal performance, PCBN manufacturers must select the physical and chemical characteristics of the raw CBN powder, including particle size, PSD, crystal morphology, surface chemistry, and impurity limits, to match the target PCBN microstructure, binder formulation, and the HPHT sintering process.
What Is PCBN and How Is CBN Powder Used in Its Manufacturing?

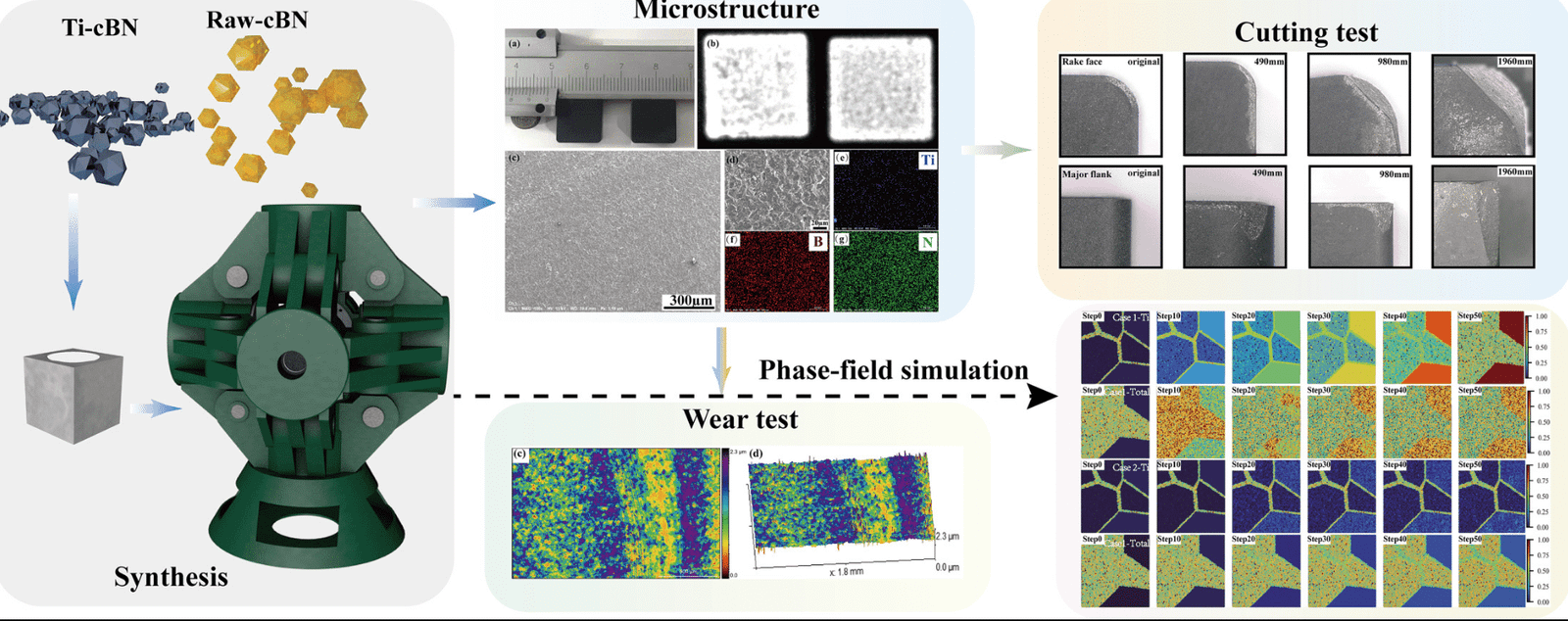

Polycrystalline cubic boron nitride (PCBN) is a composite material made by sintering CBN powder with a ceramic or metallic binder under high-pressure high-temperature (HPHT) conditions[^2]. Unlike monocrystalline mesh CBN, which consists of individual CBN crystals, PCBN contains multiple CBN grains distributed within a continuous binder phase[^3].
The CBN powder used as CBN feedstock for HPHT sintering provides the abrasive phase of the PCBN material[^4], while the binder forms the surrounding matrix that holds the CBN grains together. The CBN content, grain size and distribution, and binder composition[^5] are selected as part of the PCBN formulation and determine the resulting PCBN microstructure and properties.
PCBN can be manufactured in two main forms:

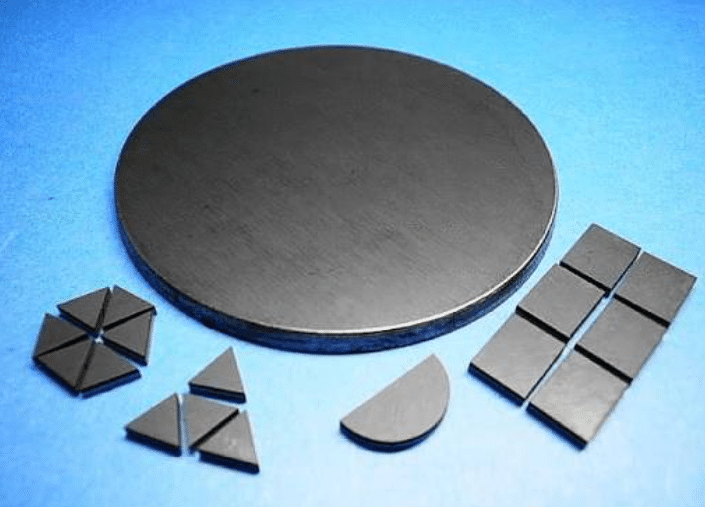

Direct-sintered PCBN: The CBN powder and binder are sintered together to form a solid PCBN body. Substrate-backed PCBN: A PCBN layer is sintered directly onto a cemented carbide substrate to form a supported cutting material.
Both manufacturing routes use HPHT sintering, but the required CBN powder characteristics, formulation, and sintering conditions depend on the target PCBN composition and product format.
How Do Particle Size and PSD Affect PCBN Manufacturing?
The target grain structure of the PCBN determines the CBN specification. If the required PCBN has a narrow, uniform grain structure, the starting CBN needs a corresponding controlled particle-size range. If the target structure contains different grain populations, the CBN particle size for PCBN manufacturing selection needs to provide those populations.
The CBN powder particle size distribution (PSD) determines how much of each particle size is present in the CBN[^6]. A PSD that is too broad can introduce particle sizes outside the intended grain structure, while a controlled PSD allows the supplied CBN to better match the target PCBN formulation.
If PCBN formulations require mixed particle sizes, different CBN fractions can be combined to produce the required grain distribution[^7]. The particle size of each fraction and its proportion in the mixture need to be defined as part of the formulation rather than relying on a single broad PSD.
For raw material specification confirmation, the CBN specification should identify the required particle-size range and PSD for each grade or fraction. The supplied material can then be checked against these specifications through PSD testing to confirm that the actual powder distribution meets the defined requirements before use in PCBN manufacturing.
How Do Purity, Crystal Integrity and Morphology Affect CBN Feedstock Selection?
CBN feedstock selection for PCBN manufacturing requires coordinated control of purity, crystal integrity, and morphology because these characteristics affect the powder during HPHT consolidation and contribute to the resulting PCBN structure.
CBN powder purity requirements for PCBN should be considered according to the CBN synthesis route, PCBN formulation, and sintering conditions[^8]. Different impurities can have different sources, contents, and chemical properties. Their effects depend on the specific impurity and formulation and may involve CBN-binder interaction, binder distribution, grain bonding, or the resulting PCBN microstructure. Relevant impurity limits should therefore be established according to the specific PCBN system.

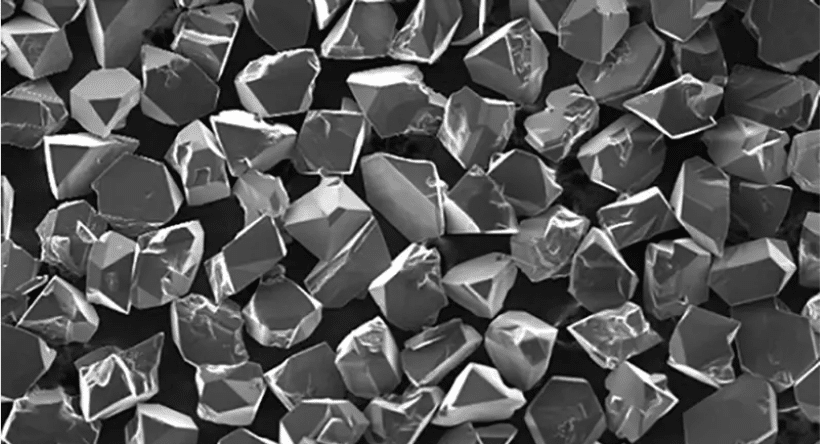

Crystal integrity and morphology should be selected according to the target PCBN grain structure and manufacturing process. Crystal shape and surface structure affect grain packing, contact between adjacent CBN grains, and binder distribution during consolidation[^9]. Crystal integrity also needs to meet the requirements of the intended PCBN formulation so that the starting CBN provides the required structural quality during HPHT processing.
Together with particle size and PSD, these characteristics define the CBN feedstock requirements for the target PCBN structure, binder formulation, and HPHT process. Maintaining the relevant characteristics within these requirements between batches helps provide consistent starting material for PCBN manufacturing.
How Should CBN Powder Be Matched to the PCBN Formulation and Sintering Process?
CBN powder should be selected from the target CBN content, binder phase, mixing method, and HPHT conditions, with the powder characteristics matched to the complete PCBN formulation rather than selected independently. The target CBN content defines the required CBN volume fraction and grain structure. This determines how much of the compact is occupied by CBN grains and how much space is available for the binder phase, so particle size and PSD need to provide the required grain packing within that formulation.
The binder composition and mixing process determine how the CBN characteristics need to perform within the formulation. Purity, surface characteristics, crystal integrity, and morphology should be compatible with the binder and its sintering behaviour, while PSD and morphology should support uniform distribution during mixing.
The selected CBN grade must also suit the HPHT pressure, temperature, holding time, and sintering sequence, which affect consolidation and final grain structure. In practice, the CBN specification is established by working backward from the target PCBN formulation and process, then selecting the CBN feedstock characteristics required for those conditions.
CBN Powder Quick Selection Guide for PCBN Manufacturing
| CBN Powder Factor | Role in PCBN Manufacturing | PCBN Consideration |
|---|---|---|
| Particle size | Determines the starting grain size of the PCBN structure | Match to the target grain structure |
| PSD | Controls particle distribution and packing | Select according to the target PCBN structure and formulation |
| Purity | Influences interaction with the binder during HPHT sintering | Control impurities according to the binder and process |
| Crystal strength | Affects grain resistance to fracture during processing | Match to the required PCBN grade and performance |
| Fracture behaviour | Influences grain development during consolidation | Select according to the target structure and performance |
| Crystal morphology | Affects packing, grain arrangement, and binder distribution | Maintain morphology suited to the target PCBN structure |
| Batch consistency | Supports repeatable powder behaviour and PCBN production | Control key characteristics between batches |
What Common Problems Should PCBN Manufacturers Check When Evaluating CBN Powder?
Consistent PCBN production requires stable CBN characteristics from batch to batch. Variations in particle size distribution, morphology, purity, crystal strength, or fracture behaviour can affect HPHT sintering and ultimately lead to inconsistent PCBN performance.
Inconsistent Grain Distribution
An unsuitable CBN particle size or PSD can produce a grain distribution that does not match the target PCBN structure. If the incoming CBN meets the specified particle-size requirements, inconsistent grain distribution may instead result from the formulation, powder mixing, or sintering conditions. Morphology should also be checked because differences in crystal shape can affect grain packing and binder distribution.
Poor CBN-Binder Interaction
CBN purity and surface characteristics can affect interaction with the binder during HPHT consolidation. Where the CBN feedstock meets the specified purity and surface requirements, poor CBN-binder interaction should be investigated through the binder composition, CBN-to-binder ratio, mixing uniformity, and sintering conditions.
Batch-to-Batch Variation
Variation in CBN feedstock characteristics between batches can change powder packing and sintering behaviour. Differences in PSD, morphology, purity, crystal integrity, or other specified characteristics should first be checked against the raw material requirements. If the feedstock meets specification, variation should then be investigated in the formulation, mixing, or HPHT process rather than attributed to the raw material.
How Can Crownkyn Help You Select CBN Powder for PCBN Manufacturing?
Crownkyn supplies CBN feedstock for PCBN manufacturing. We help customers match the CBN powder characteristics to the target PCBN formulation and HPHT sintering process.
To recommend a suitable starting specification, please provide the following information:
| Information | Details to Provide |
|---|---|
| Intended PCBN application | Workpiece material, machining operation, and intended cutting application |
| CBN content | Target CBN content or CBN-to-binder ratio, if known |
| Binder system | Binder type and composition, if available |
| Current CBN specification | Particle size, PSD, purity, morphology, and grade, if known |
| Mixing process | Mixing method and relevant formulation details |
| HPHT process | Pressure, temperature, holding time, and sintering conditions, if available |
Based on the information provided, Crownkyn can recommend candidate CBN specifications for new PCBN formulations or replacement of an existing feedstock. We can also provide relevant particle-size, PSD, purity, and morphology data to support material evaluation and selection.
Contact Crownkyn to discuss your PCBN CBN powder requirements or request a sample for evaluation.
Frequently Asked Questions About CBN Powder in PCBN Manufacturing
What CBN particle size should I choose for PCBN manufacturing?
Start with the target PCBN grain structure rather than nominal particle size alone. Confirm the required particle-size range, PSD, and limits on oversized particles. Fine, coarse, or blended CBN powders should be evaluated with the intended formulation and sintering process.
What should I check when qualifying a new CBN powder supplier?
Compare the powder's PSD, morphology, specified impurity levels, and batch consistency against your feedstock requirements. Request available test reports and evaluate sample powders using your intended PCBN formulation and processing conditions before approving a new CBN grade.
Which impurities should be controlled in CBN powder for PCBN?
The relevant impurities and acceptable limits depend on the CBN powder, binder chemistry, and manufacturing process. Oxygen-containing surface species and metallic impurities may require attention, but the specific test items, limits, and methods should be agreed upon for the intended PCBN formulation.
How should I investigate PCBN quality variation between batches?
First compare CBN feedstock records, including PSD, morphology, and relevant impurity data. Then check the binder formulation, mixing process, and HPHT conditions. Variation in finished PCBN properties does not necessarily mean that the CBN powder is defective.
How should I evaluate CBN powder for a new PCBN grade?
Define the target grain structure, binder system, and required finished properties before selecting candidate CBN powders. Compare samples under controlled formulation and HPHT conditions, then assess the resulting PCBN microstructure and performance before finalizing the feedstock grade.
Conclusion
CBN powder selection directly influences PCBN microstructure, sintering behaviour, and finished performance. Particle size, PSD, purity, morphology, crystal strength, fracture behaviour, and batch consistency should be matched to the target PCBN grade and manufacturing process. Comparative testing with the intended formulation and sintering conditions provides the most reliable basis for final specification.
References
[1] The study of volumetric wearing of PCBN/W-Re composite - University of Catalonia Supports: PCBN is widely used in cutting tools for machining hardened steels, cast irons, and superalloys.
[2] Sintering Materials In Today's World - Penn State University Supports: PCBN is made by sintering CBN powder with a ceramic or metallic binder under HPHT conditions.
[3] The Effect of cBN Powder with Matched Particle Size - Harvard Supports: PCBN contains multiple CBN grains distributed within a continuous binder phase.
[4] Investigation of the structural stability of polycrystalline CBN - Science Direct. Supports: CBN powder used as feedstock provides the abrasive phase of PCBN.
[5] Bi-layer CBN-based composites reinforced with oxide - PMC Supports: CBN content, grain size and distribution, and binder composition determine PCBN microstructure and properties.
[6] Production of powder coatings with defined particle size - Harvard Supports: PSD describes how much of each particle size is present in a CBN powder.
[7] Effects of Particle Size Distribution with Efficient Packing - PMC Supports: Different CBN particle-size fractions can be combined to obtain a desired grain distribution.
[8] Fabrication of Polycrystalline Cubic Boron Nitride/Metal - PMC Supports: CBN powder purity requirements for PCBN depend on synthesis route, formulation, and sintering conditions.
[9] [Influence of powder particle size distributions on surface - University of Texas](https://utw10945.utweb.utexas.edu/sites/default/files/2024/34%20Influence%20of%20Powder%20Particle%20Size%20Distributions.pdf） Supports: CBN crystal morphology can affect packing, grain contacts, and binder distribution during consolidation.
Drafted by: Gareth Bayley
Technical Review & Editing: Ashley Wei
