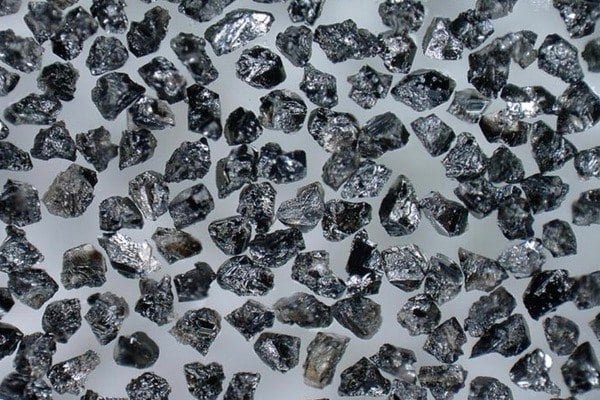

| Abrasive Type | Monocrystalline Cubic Boron Nitride |
|---|---|
| Product Series | Mesh CBN Grit |
| Grade | CBN-B10 |
| Color Family | Black |
| Grade Direction | Resin-Bond / Friable Grade |
| Crystal Morphology | Irregular and angular monocrystalline particles |
| Relative Strength | Lower to Medium |
| Friability | Relatively High |
| Selection Focus | Free cutting, self-sharpening and grinding efficiency |
| Typical Bond Systems | Resin Bond / Selected Vitrified Bond |
| US Mesh Size | GB/T 6406-2016 / ISO 6106 | FEPA CBN Designation | Nominal Size Range (μm) |
|---|---|---|---|
| 70/80 | 213 | B213 | 212–180 |
| 80/100 | 181 | B181 | 180–150 |
| 100/120 | 151 | B151 | 150–125 |
| 120/140 | 126 | B126 | 125–106 |
| 140/170 | 107 | B107 | 106–90 |
| 170/200 | 91 | B91 | 90–75 |
| 200/230 | 76 | B76 | 75–63 |
| 230/270 | 64 | B64 | 63–53 |
| 270/325 | 54 | B54 | 53–45 |
| 325/400 | 46 | B46 | 45–38 |
| 400/500 | 39 | B39 | 38–32 |
| 500/600 | 33 | B33 | 32–26 |
Particle size designations are provided according to commonly used superabrasive grit standards. Product-specific size availability should be confirmed according to the selected CBN grade.
Suitable for free-cutting grinding of hardened steels and ferrous alloys.
Suitable for precision grinding requiring sharp cutting and active grain renewal.
Suitable for resin-bond tools requiring controlled fracture and self-sharpening.
