- Nickel Coating (Ni): Improves adhesion between CBN grains and resin bonds
- Excellent Thermal Stability: Maintains performance under high grinding temperatures
- Reduced Grinding Resistance: Enables smoother cutting and lower energy consumption
- High Grinding Precision: Supports fine surface finish and dimensional control

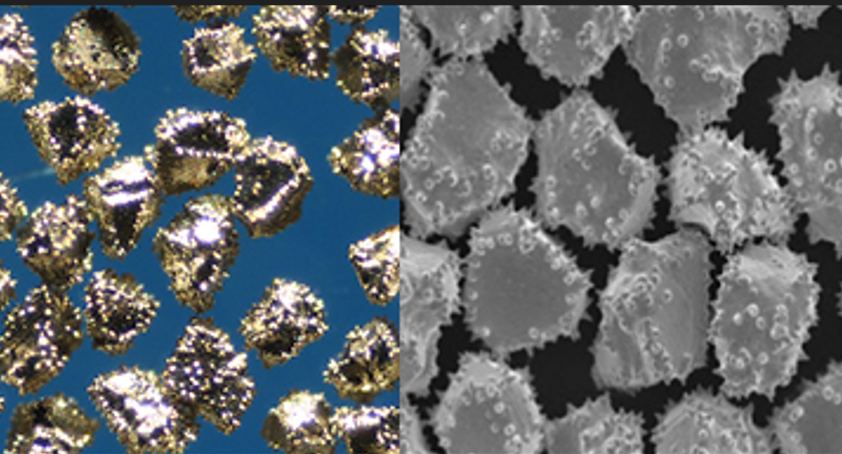

Ni-coated CBN Powder
20+ Years Experience
Ultra-Precision Quality
Customized Solutions
Ni-coated CBN powder features a uniform nickel coating that enhances bond retention, thermal stability, and grinding precision. It is designed for resin bond systems to deliver stable cutting performance and consistent surface quality when machining ferrous materials.
Features
Specifications
Coating Types and Their Functions

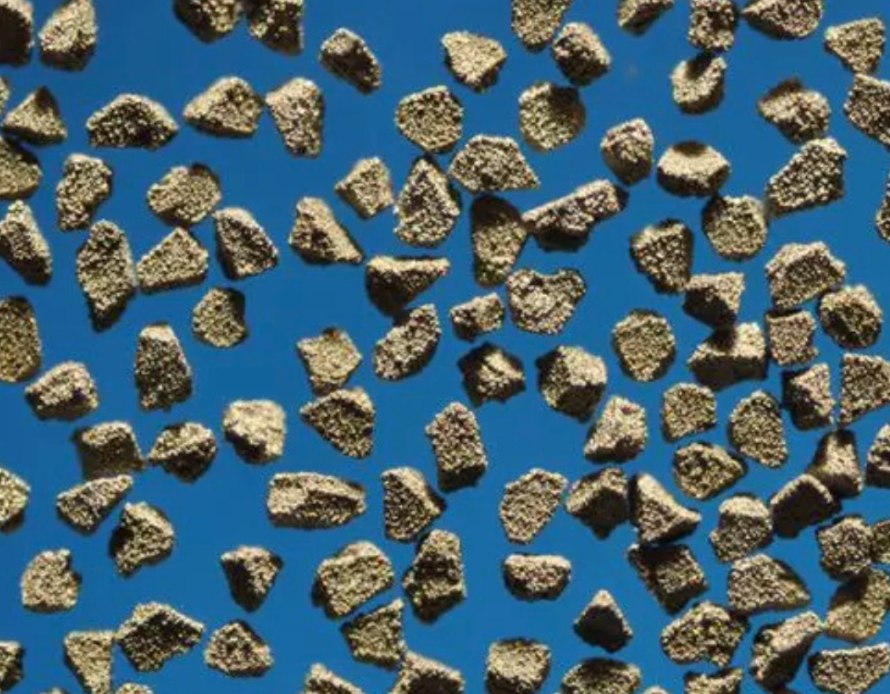

Electroless Plating (Chemical Plating)
An auto-catalytic process that deposits coatings such as Ni or Cu uniformly without electricity. It is ideal for micron powders and irregular grains, improving wettability, dispersion, and bond retention in resin and bronze bond tools.

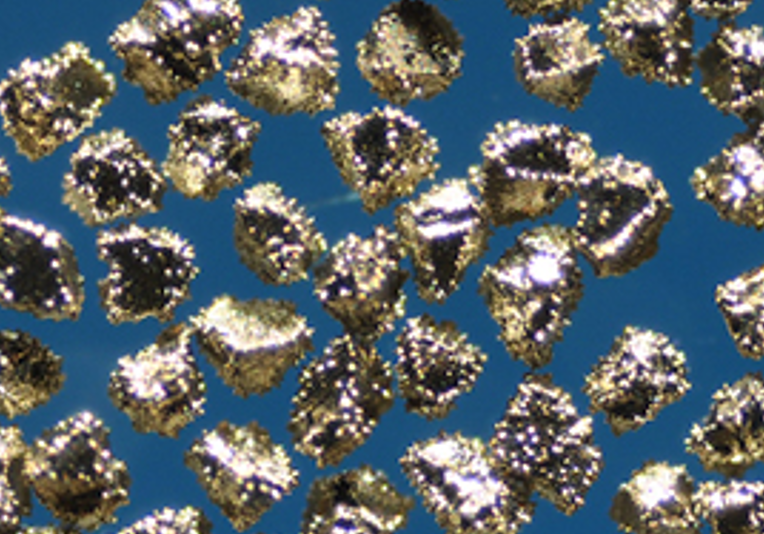

Electroplating Method
A current-assisted coating process for Ni, Ni-Co, and similar metal layers with strong adhesion. It enables precise thickness control and reliable grit holding, making it suitable for electroplated tools and applications requiring consistent particle retention.
CVD (Chemical Vapour Deposition)
A high-temperature vapour-phase process that forms carbide-forming coatings such as Ti, Cr, or TiC. CVD coatings provide excellent thermal stability, oxidation resistance, and chemical protection, ideal for vitrified and metal bond tools used in aggressive, high-temperature grinding.
Available Grit Sizes and Coating Thickness
Coating Thickness
- Standard Coating Range:
Typically 30% to 60% by weight, depending on coating material and application requirements. - Custom Coating Options:
Available to match specific bond systems or processing conditions upon request.
Available Grit Sizes
| Mesh (FEPA) | 40/50 (B427) |
50/60 (B301) |
60/80 (B252) |
80/100 (B181) |
100/120 (B151) |
120/140 (B126) |
140/170 (B107) |
170/200 (B91) |
200/230 (B76) |
230/270 (B64) |
270/325 (B54) |
325/400 (B46) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B10 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| B15 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| B50 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| A70 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| A80 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| A90 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| A99 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Ni-coated | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Ti-coated | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Applications
Ferrous Metals
Used for precision grinding and finishing of hardened steels and other ferrous materials.
- Precision grinding wheels
- Honing stones and finishing tools
